Mono Lake, California: 2nd model

Model : mono2
Simile version : 3.1+
Date added : 2003-06-26
Keywords : Lake model ; Mono Lake, California ; Lumped model ; Water ;

Description

Mono Lake is a lake in the Sierra Nevada, California, that was used to supply water to Los Angeles, and is also of considerable ecological importance. This is the first of a series of models developed as a teaching exrcise to explore the effects of different policies for water extraction.

This model uses a single compartment to represent the amount of water in the lake, with inflows representing precipitation, flow in past diversion points and other sources; and flows out for evaporation and other losses (extraction).

This model differs from the first in that the surface area of the lake now depends on the volume of water in the lake, rather than being assumed to be constant.

Source: Andrew Ford (1999): Modelling the Environment, p.40

dW/dt = P+F+O-E-X
P = p*sa
E = e*sa
F = r-ex

Where:
W = water in lake
P = precipitation
F = fl = ow past diversion points
O = other flow in
E = evaporation
X = extraction
p = precipitation rate
sa = surface area
e = evaporation rate
r = sierra gauged runoff
ex = export

Files

Model file

Click on the icon to download the model file. (You will need Simile to examine and run the model. A free evaluation version is available from the products page.)

Some browsers may attempt to display the model file, rather than open it in Simile; in this case, use the browser back button to return to this page, and use the context menu (invoked by right-clicking on the link) to save the target file to disk.

p040.sml

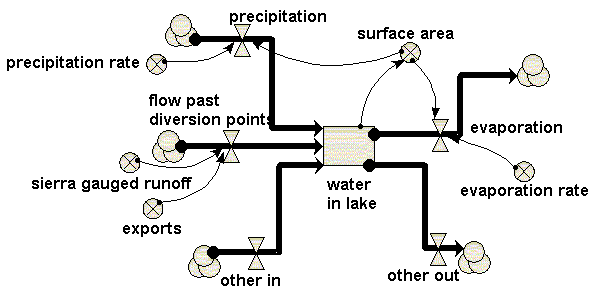

Diagram

Equations

Compartments:
	water in lake
	Initial value = 2228
	Comments: Amount of water in lake, KAF (thousand acre-feet)

Flows:
	evaporation = surface_area*evaporation_rate
	Comments: thousand acre-feet/year

	flow past diversion points = sierra_gauged_runoff-export
	Comments: thousand acre-feet/year

	other in = 47.6
	Comments: thousand acre-feet/year

	other out = 33.6
	Comments: thousand acre-feet/year

	precipitation = surface_area*precipitation_rate
	Comments: thousand acre-feet/year

Variables:
	surface area = graph(water_in_lake)
	Comments: thousand acre

Parameters:
	evaporation rate = 3.75
	Comments: feet/year

	export = 100
	Comments: thousand acre-feet/year

	precipitation rate = 0.667
	Comments: feet/year

	sierra gauged runoff = 150
	Comments: thousand acre-feet/year

Results

|

|

References

Ford, A (1999) Modeling the Environment.
Island Press. p.40
