Two-compartment mixing process

Model : Muller1-1b
Simile version : 4.0
Date added : 2004-11-21
Keywords : Mixing, solution ; Basic System Dynamics ;

Description

This model is an extension of the One-compartment mixing process (see related models).

Only 5 l of salt solution is available instead of the unlimited supply in the one-compartment mixing model. A flask is added upstream of the original flask and contains the 5 l salt solution. The new flask has an input of a more dilute salt solution (concentration cin_water).

Files

Model file Click on the icon to download the model file. (You will need Simile to examine and run the model. A free evaluation version is available from the products page.) Some browsers may attempt to display the model file, rather than open it in Simile; in this case, use the browser back button to return to this page, and use the context menu (invoked by right-clicking on the link) to save the target file to disk.

Mod1-1bP.sml

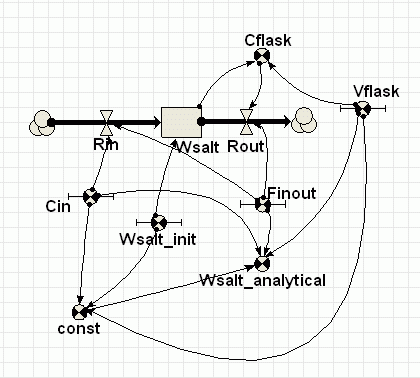

Diagram

Results

The model was run 3 times with cin_water set to different values:

• run1, cin_water=0
• run2, cin_water=10
• run3, cin_water=20>

|
