Age-class model of population dynamics, one compartment per age class

ModelId:
ageclass4
SimileVersion:
5.9

 This models a population of animals in terms of four age-classes. For each age-class, we use a compartment (state variable) to represent the number of individuals in that class.

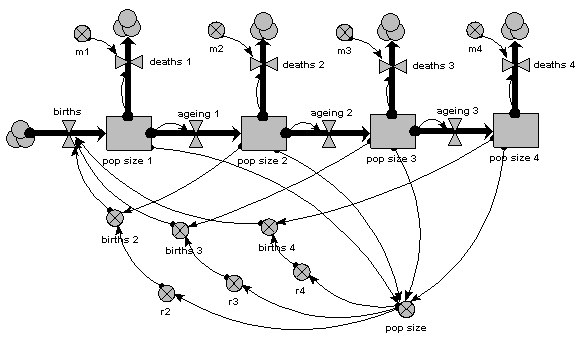

In this model, there are four compartments on the model diagram. They are connected by flow arrows, which represent the aging process: the flow of individuals from one class to the next as they get older. Simile allows the same mathematical model to be represented more concisely, using a single compartment embeddedinside a multiple-instance submodel: see the links to other models below.

Equations:

 Compartments

pop_size_1: initial value = 2
pop size_2: initial value = 0
pop size_3: initial value = 0
pop size_4: initial value = 0

Flows
ageing_1 = pop_size_1
ageing_2 = 0.2*pop_size_2
ageing_3 = 0.1*pop_size_3
births = births_2+births_3+births_4
deaths_1 = m1*pop_size_1
deaths_2 = m2*pop_size_2
deaths_3 = m3*pop_size_3
deaths_4 = m4*pop_size_4

Parameters
m1 = 0.05
m2 = 0.01
m3 = 0.01
m4 = 0.05

Intermediate variables
births_2 = r2*pop_size_2
births_3 = r3*pop_size_3
births_4 = r4*pop_size_4
pop size = pop_size_1+pop_size_2+pop_size_3+pop_size_4
r2 = 0.05*(1-pop_size/100)
r3 = 0.2*(1-pop_size/100)



Results:





AttachmentSize
Binary Data ageclass4.sml230.82 KB
Binary Data ageclass4.shf3.57 KB
